Common Base Connection (CB Configuration)

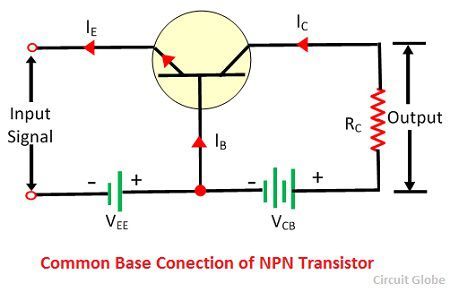

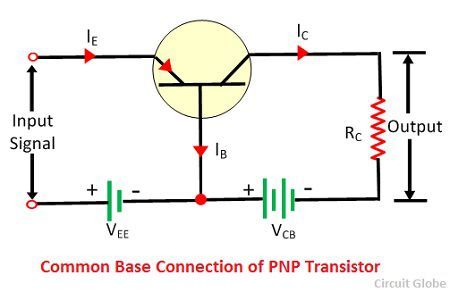

Definition: The configuration in which the base of the transistor is common between emitter and collector circuit is called a common base configuration. The common base circuit arrangement for NPN and PNP transistor is shown in the figure below. In common base-emitter connection, the input is connected between emitter and base while the output is taken across collector and base.

Current Amplification factor (α)

The ratio of output current to input current is known as a current amplification factor. In the common base configuration, the collector current I_C is the output current, and the emitter current I_E is the input current. Thus, the ratio of change in emitter current to the collector at constant collector-base voltage is known as a current amplification factor of a transistor in common base configuration. It is represented by α (alpha).

Where ΔI_C is the change in the collector and ΔI_E is changed in emitter current at constant V_CB. Now,

The value of current amplification factor is less than unity. The value of the amplification factor (α) reaches to unity when the base current reduces to zero. The base current becomes zero only when it is thin and lightly doped. The practical value of the amplification factor varies from 0.95 to 0.99 in the commercial transistor.

Collector Current

The base current is because of the recombination of the electrons and holes in the base region. The whole emitter current will not flow through the current. The collector current increase slightly because of the leakage current flows due to the minority charge carrier. The total collector current consists;

1. The large percentage of emitter current that reaches the collector terminal, i.e., αI_E.
2. The leakage current I_leakage. The minority charge carrier is because of the flow of minority charge carrier across the collector-base junction as the junction is heavily reversed. Its value is much smaller than αI_E.

Total collector current,

The above expression shows that if I_E = 0 (when the emitter circuit is open) then still a small current flow in the collector circuit called leakage current. This leakage current is represented by as I_CBO, i.e., collector-base current with emitter circuit is open.

The leakage current is also abbreviated as I_CO i.e., the collector current with emitter circuit open.

Characteristics of Common Base (CB) Configuration

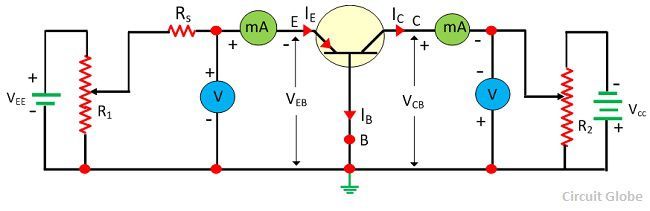

The characteristic diagram of determining the common base characteristic is shown in the figure below.

The emitter to base voltage V_EB can be varied by adjusting the potentiometer R₁. A series resistor R_S is inserted in the emitter circuit to limit the emitter current I_E. The value of the emitter change to a large value even the value of a potentiometer slightly change. The value of collector voltage changes slightly by changing the value of the potentiometer R₂. The input and output characteristic curve of the potentiometer explains below in details.

Input Characteristic

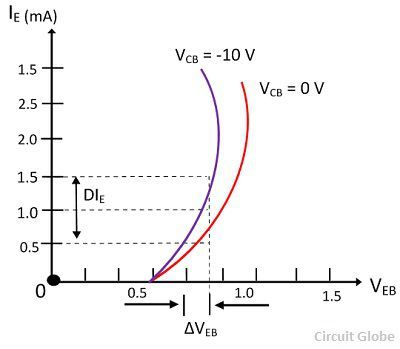

The curve plotted between emitter current I_E and the emitter-base voltage V_EB at constant collector base voltage V_CB is called input characteristic curve. The input characteristic curve is shown in the figure below.

The following points are taken into consideration from the characteristic curve.

1. For a specific value of V_CB, the curve is a diode characteristic in the forward region. The PN emitter junction is forward biased.
2. When the value of the voltage base current increases the value of emitter current increases slightly. The junction behaves like a better diode. The emitter and collector current is independent of the collector base voltage V_CB.
3. The emitter current I_E increases with the small increase in emitter-base voltage V_EB. It shows that input resistance is small.

Input Resistance

The ratio of change in emitter-base voltage to the resulting change in emitter current at constant collector base voltage V_CB is known as input resistance. The input resistance is expressed by the formula

The value of collector base voltage V_CB increases with the increases in the collector-base current. The value of input resistance is very low, and their value may vary from a few ohms to 10 ohms.

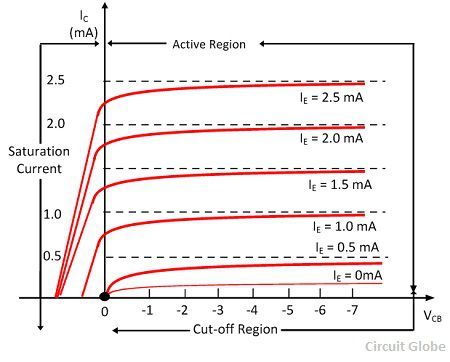

Output Characteristic Curve

In common base configuration, the curve plotted between the collector current and collector base voltage V_CB at constant emitter current I_E is called output characteristic. The CB configuration of PNP transistor is shown in the figure below. The following points from the characteristic curve are taken into consideration.

1. The active region of the collector-base junction is reverse biased, the collector current I_C is almost equal to the emitter current I_E. The transistor is always operated in this region.
2. The curve of the active regions is almost flat. The large charges in V_CB produce only a tiny change in I_C The circuit has very high output resistance r_o.
3. When V_CB is positive, the collector-base junction is forward bias and the collector current decrease suddenly. This is the saturation state in which the collector current does not depend on the emitter current.
4. When the emitter current is zero, the collector current is not zero. The current which flows through the circuit is the reverse leakage current, i.e., I_CBO. The current is temperature depends and its value range from 0.1 to 1.0 μA for silicon transistor and 2 to 5 μA for germanium transistor.

Output Resistance

The ratio of change in collector-base voltage to the change in collector current at constant emitter current I_E is known as output resistance.

The output characteristic of the change in collector current is very little with the change in V_CB. With the change in collector-base voltage. The output resistance is very high of the order of several kilometres.
